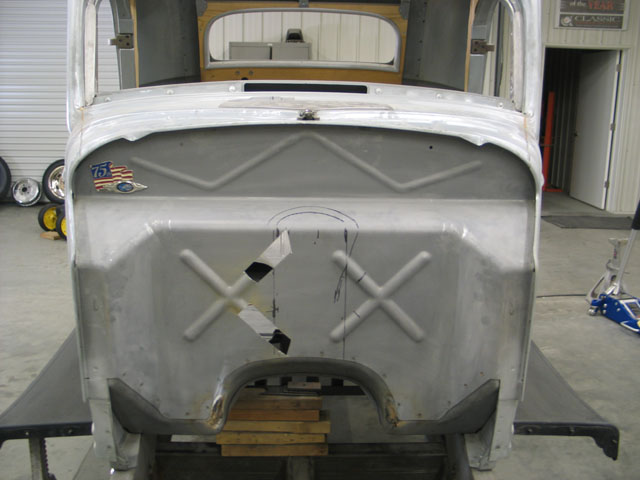

Here’s the stock firewall. We’re running a Hilborn Injected Nailhead with a Joe Hunt Magneto which will need a little clearance. We’re going to leave the X’s, just shortened up a bit.

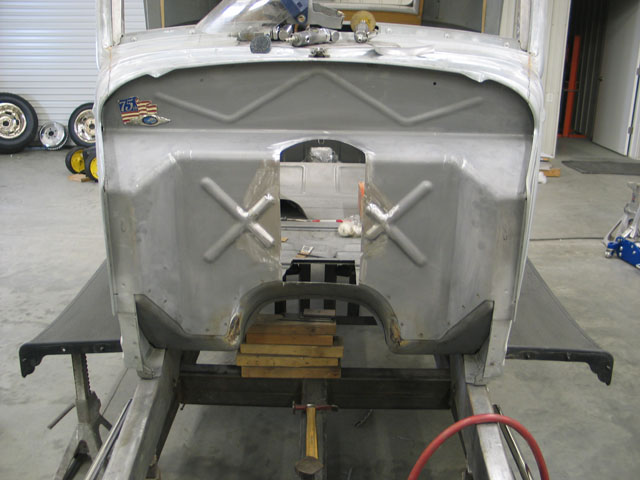

At this point we’ve cut out the section that needs to be relieved and shortened up the X’s, now just need to make a nice curved piece in it’s place. The object is to keep it looking as original as possible .

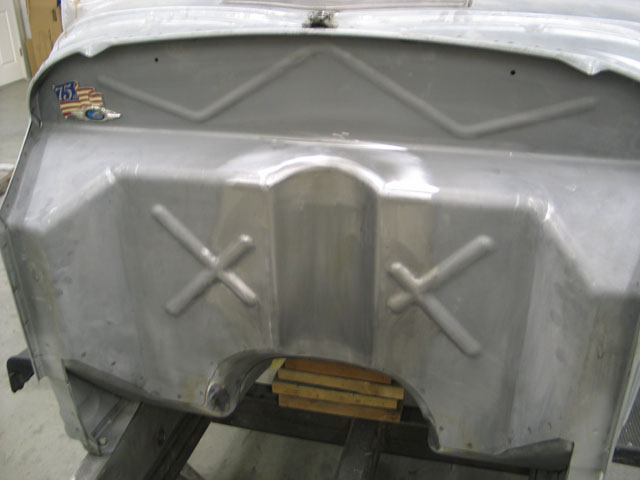

|Here’s what we came up with. Hopefully it looks like it could have came from the factory this way.|

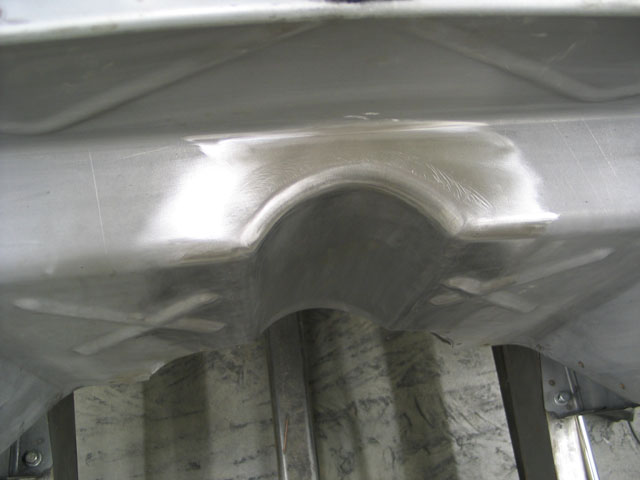

|The top area is curved also. Little more work, but looks a lot better|

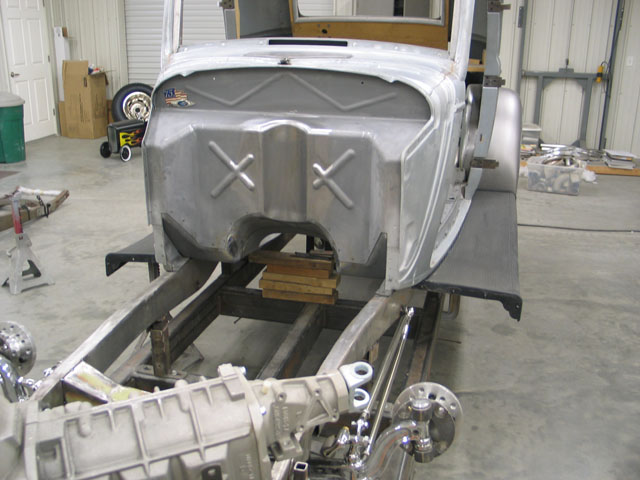

|.||Now we have a little extra room.|
