![](images/wishbone/wishbones2.jpg) |

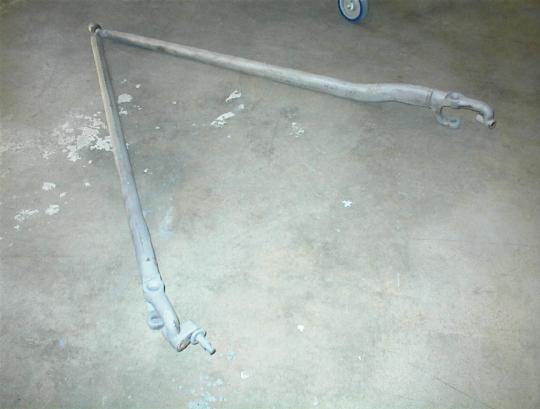

As
you can see, we're using split wishbones up front.
|
![](images/wishbone/wishbones4.jpg) |

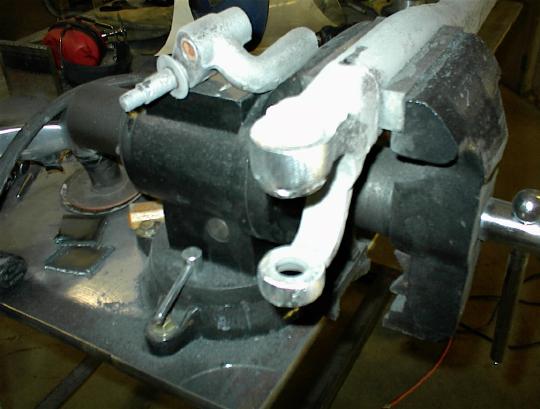

After we split them apart, we cut off the spring mounts.
|
![](images/wishbone/wishbones6.jpg) |

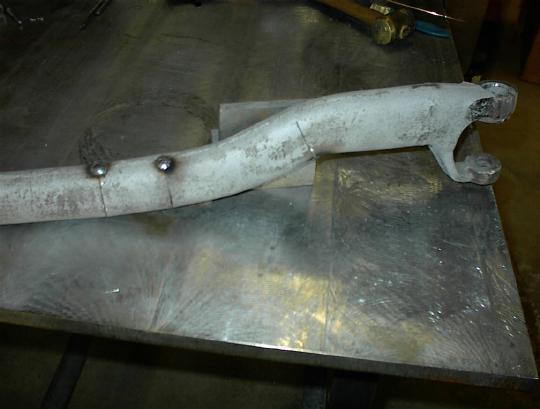

Because we're using a flat front crossmember, clearance under the frame
rails became an issue. So we pie cut them a few times.
|
![](images/wishbone/wishbones7.jpg) |

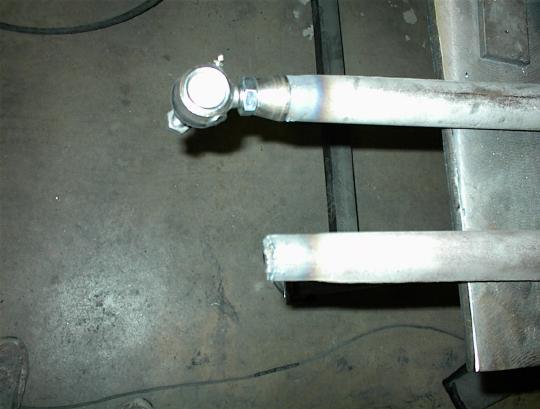

After that, we added bungs for the heavy duty tie rod ends we used at the
back.
|
![](images/wishbone/wishbones9.jpg) |

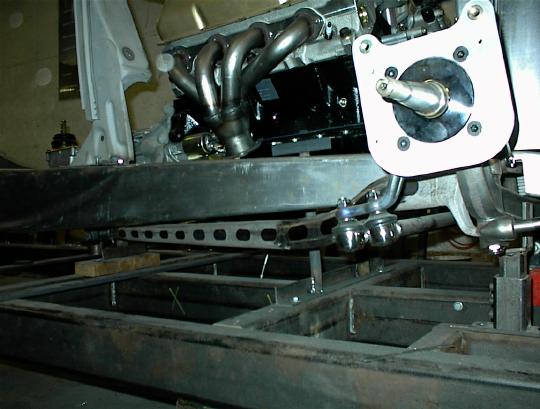

Rather than take them all of the way out to the frame rails, we are
mounting them to the crossmembers under the car.
|

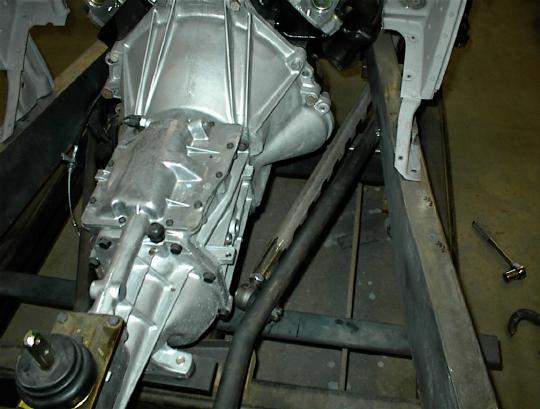

![](images/wishbone/wishbones11.jpg) |
|
